Trunking SystemTrunking SystemTrunking SystemTrunking System

Trunking System

  • Product Item:TPD019
  • Light weight;
  • Specially designed for low finished flooring height;
  • Eco-friendly and excellently recyclable;
  • Satisfactory electrical conductivity and air permeability facilitate cabling.
  • OA access floor  , Access Floor  , Cable Tray
    Inquiry Send Email

    Description

    Trunking System, made of cement core steel panels, enables easy routing through the  cable tanks around the panels. The data cables and power cables can be routed in such a way to reduce electro magnetic interfaces. This is  recommended as an ideal solution for commercial building where there is low roof height. The system  is available in low floor level and high floor level.

    1.Low Profile Built-in Trunking System

    In low profile trunking system, the height of the total system can be achieved in a rangeof 35 mm to 80 mm. This is an ideal solution where the roof height is low or the allottedfloor provision less than 100 mm. Each tile is surrounded by cable tanks and the cabletermination is possible trough the specially designed floor boxes. The rod type pedestalsglued to the floor and the cable tanks covers fix in the slots, installation makes very easyfor this system. The tiles can be available either in 600x600mm size or in 500x500mmsize and are ready to accept any top finish like carpet or parquet. Floor box installation isvery easy in this system as it can be installed by removing any of the top cover of cable tank.

    2.High Profile Built-in Trunking System

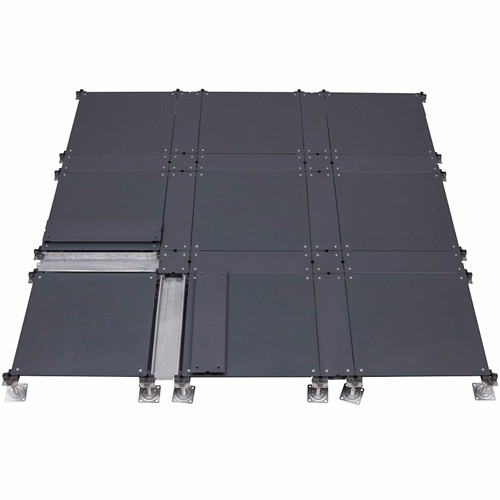

    Whereever the height need to be above 100mm, high profile trunking system suggested. In thissystem, 500x500mm cement tiles fixed on corner lock pedestals with cable tanks surrounded. Thedesign of cable tanks can be either next to each tile or after alternative tiles. The top cover of cabletanks fixed with screws. The maximum height of this system can be 200 mm.


    3.Corner Lock System

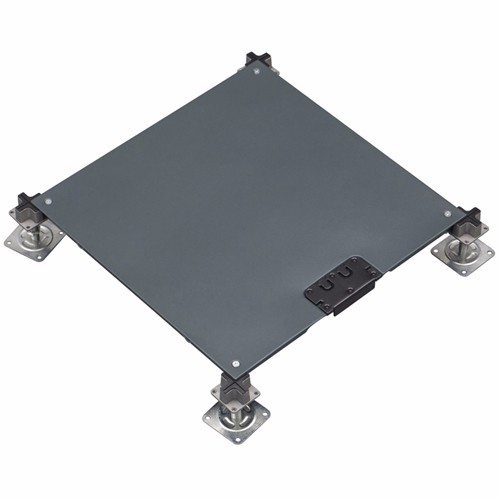

    In this system, cement core steel panels arefixed to a cross head pedestals with out thesupport of stingers. The panels are directlyfixed to the slots of cross head pedestal withthe screws. The pedestal head is fixed with ashock proof cushion.
