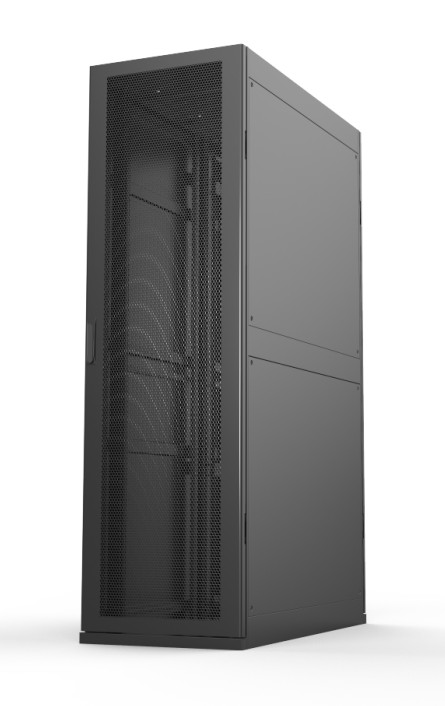

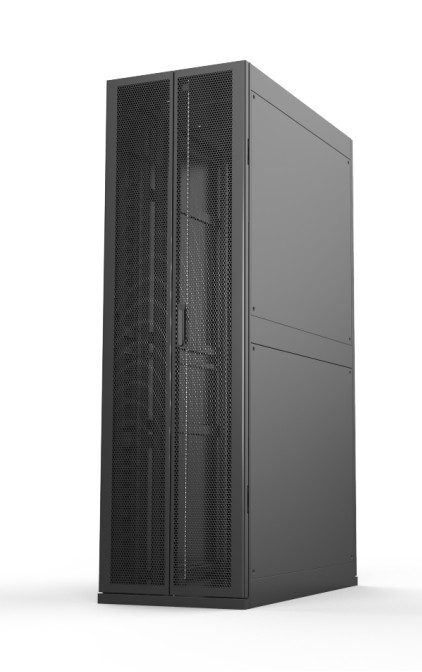

Rack Server DCRS2044

Product Item：DCRS2044

Loading capacity：800 KG

Height：18/22/27/32/37/42/47U

Width: 600/800mm

Depth：600/800/1000/1100/1200mm

Features :

1. Various sizes and parts are available according to different application demand.

2. Welded frame, demountable structure design, light duty but sturdy and flexible.

3. Closed-able cable routing at top and bottom panel, according to project request, customized big cable entrance at bottom is available on demand.

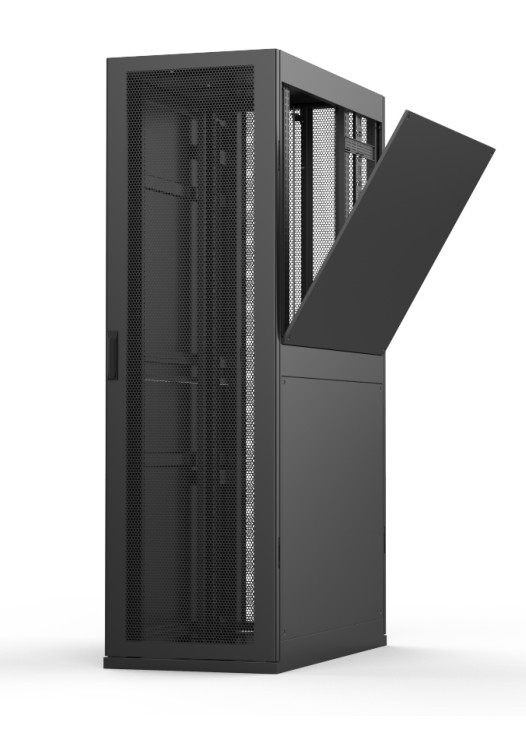

4. Embedded side panel, tool free in assembling and dismantling, lock is optional.

5. Embedded side panel, tool free in assembling and dismantling, lock is optional.

6. Front door and rear door can be interchanged quickly without tools, opening angle 180°, convenient for equipments installation and maintenance.

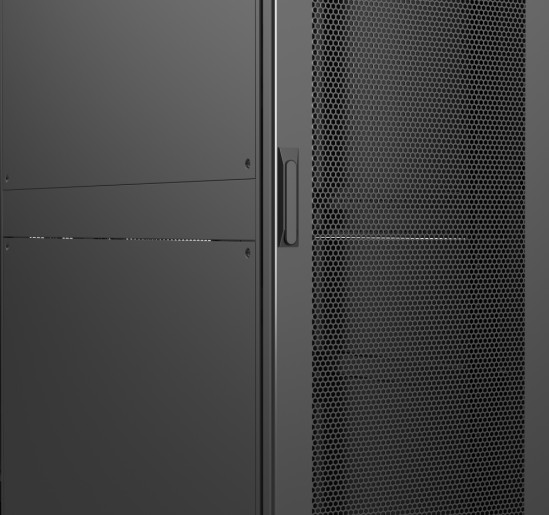

7. Rotary door handle, keys are universal to front and rear doors for all KA series cabinets.

8. Providing several copper grounding stud. Complete accessories.

9. Provided with adjustable feet, maximum static loading is 800kgs.

10. Plinth is optional in order to fix the cabinet, for bottom cable routing, cooling and anti-rats.

11. Surface treatment procedure is degreasing-->pickling-->anti-rust and phosphorization-->water cleaning-->powder coating, RoHS compliant.

Application :
